I-CCS2 ukuya kwi-CHAdeMO Adaptor
Isicelo se-CCS2 ukuya kwi-CHAdeMO Adapter
Isiphelo soqhagamshelo lwe-adaptha ye-DC sihambelana nemigangatho ye-CHAdeMO: 1.0 kunye ne-1.2. Icala lesithuthi le-adaptha ye-DC lihambelana nemiyalelo elandelayo ye-EU: I-Low Voltage Directive (LVD) 2014/35/EU kunye ne-Electromagnetic Compatibility (EMC) Directive EN IEC 61851-21-2. Unxibelelwano lwe-CCS2 luhambelana ne-DIN70121/ISO15118. I-CCS2 ukuya kwi-CHAdeMO Adapter ivala umsantsa phakathi kwemigangatho yokutshaja, ivumela izithuthi ezixhotyiswe yi-CCS2 ukuba ziqhagamshele ngokulula kwiitshaja ezikhawulezayo ze-CHAdeMO—yandisa iindlela zakho zokutshaja naphi na apho uya khona.
I-CCS2 ukuya kwi-CHAdeMO Adaptor Iinkcukacha zeMveliso
| Igama leModi | I-CCS2 ukuya kwi-CHAdeMO Adaptor |
| I-voltage elinganisiweyo | 1000V DC |
| Ikaliwe ngoku | 250A MAX |
| Melana nombane | 2000V |
| Sebenzisa kwi | Isitishi sokutshaja seCCS2 siza kutshaja iimoto ze-CHAdeMO EV |
| Ibanga loKhuseleko | IP54 |
| Ubomi boomatshini | Iplagi yokungena/yokuphuma ayilayishwanga> amaxesha ali-10000 |
| Ukuphuculwa kweSoftware | Ukuphuculwa kwe-USB |
| Ubushushu bokusebenza | 一 30℃~+50℃ |
| Izinto ezisetyenzisiweyo | Izinto zetyala: PA66+30% GF, PC |
| Ibanga elithintela ilangatye UL94 V-0 | |
| Isiphelo sendlela: I-alloy yobhedu, i-silver plating | |
| Iimoto ezihambelanayo | Sebenza kwi-CHAdeMO version EV: Nissan Leaf, NV200, Lexus, KIA, Toyota, |
| Prosche,Taycan,BMW,Benz,Audi,Xpeng…. |

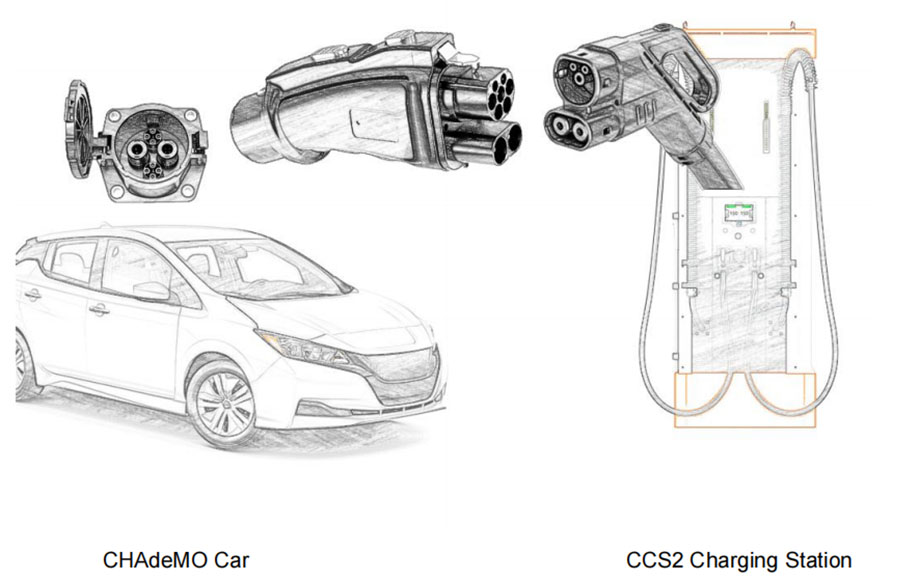

Indlela yokusebenzisa i-CCS2 kwi-CHAdeMO Adapter
1. Qinisekisa ukuba imoto yakho ye-CHAdeMO ikwimo ye-"P" (park) kwaye iphaneli yesixhobo icinyiwe. Emva koko, vula i-DC charging port kwimoto yakho.
2. Faka isixhumi se-CHAdeMO kwisithuthi sakho se-CHAdeMO.
3. Qhagamshela intambo yesitishi sokutshaja kwiadaptha. Ukuze wenze oku, lungelelanisa isiphelo se-CCS2 seadaptha uze uyicinezele ide icinezele endaweni yayo. Iadaptha ine "keyways" ezahlukeneyo ezenzelwe ukuhambelana neethebhu ezifanelekileyo kwintambo.
4. Vula iadaptha yeCCS2 To CHAdeMO (cinezela imizuzwana emi-2 ukuya kwemi-5 ukuze uyivule).
5. Landela imiyalelo eboniswe kwi-interface yesikhululo sokutshaja seCCS2 ukuze uqalise inkqubo yokutshaja.
6. Ukhuseleko lubaluleke kakhulu, ngoko ke soloko ulandela amanyathelo okhuseleko afunekayo xa usebenzisa izixhobo zokutshaja ukuthintela iingozi okanye umonakalo kwisithuthi sakho okanye kwisikhululo sokutshaja.
Ungayenza njani isoftware yokuhlaziya i-CCS2 kwi-CHAdeMO Adapter?
Izinto Okufanele Zilungiswe:
1. Uhlobo lwentambo yokudlulisela i-C-USB * 1
2. I-USB flash drive engenazo iifayile * 1
Amanyathelo Okusebenza:
1. Gcina ifayile yokuhlaziya ene-.UPG suffix kwi-USB flash drive engenanto. Emva koko landela la manyathelo angezantsi ukuze uphucule isixhobo ngesoftware yamva nje ebonelelwe ngumsasazi.
QAPHELA: MAIN_CCS2CHAdeMO_1.UPG (Uhlobo oluqhelekileyo)
2. Vula ityesi yerabha ethambileyo ezantsi kwemveliso.
3. Sebenzisa ujongano lwe-Type C ukuze uqhagamshele kwimveliso.
4. Faka i-USB flash drive kwi-adaptha yekhebula le-USB, cofa iqhosha lombane, isibane siya kukhanya malunga nemizuzwana eli-10, size sivale ngokuzenzekelayo.
5. Tsala i-USB flash drive uze ucinezele iqhosha lokuvula kwakhona, isibane siya kukhanya imizuzwana eli-10 size sivale ngokuzenzekelayo. Inkqubo yokuphucula igqityiwe ngempumelelo.
Ingaba iimoto zakho ze-EV ziyayidinga le Adapter?
I-Bollinger B1
I-BMW i3
BYD J6/K8
I-Citroën C-ZERO
I-Citroën Berlingo Electric/E-Berlingo Multispace (kude kube ngu-2020)
I-ENERGICA MY2021[36]
I-GLM Tommykaira ZZ EV
I-Hino Dutro EV
IHonda Clarity PHEV
Imoto ye-Honda Fit EV
IHyundai Ioniq Electric (2016)
IHyundai Ioniq 5 (2023)
IJaguar i-Pace
I-Kia Soul EV (yemarike yaseMelika naseYurophu kude kube ngu-2019)
I-LEVC TX
ILexus UX 300e (yaseYurophu)
IMazda Demio EV
IMitsubishi Fuso eCanter
IMitsubishi kunye neMiEV
Ilori yeMitsubishi MiEV
IMitsubishi Minicab MiEV
IMitsubishi Outlander PHEV
I-Mitsubishi Eclipse Cross PHEV
Igqabi leNissan
INissan e-NV200
IPeugeot e-2008
I-Peugeot iOn
I-Peugeot Partner EV
IPeugeot Partner Tepee ◆Subaru Stella EV
Imodeli yeTesla 3, S, X kunye neY (iimodeli zaseMntla Melika, zaseKorea, nezaseJapan nge-adaptha,[37])
Imodeli yeTesla S, kunye ne-X (Iimodeli ezinezibuko zokutshaja zaseYurophu nge-adaptha, ngaphambi kweemodeli ezine-CCS 2 edibeneyo)
IToyota eQ
IToyota Prius PHV
I-XPeng G3 (iYurophu 2020)
Akukho zithuthuthu (ngokungena okunganyanzelekanga)
I-Vectrix VX-1 Maxi Scooter (ngokungena okunganyanzelekanga)
